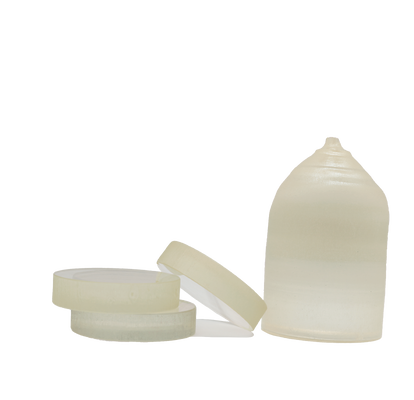

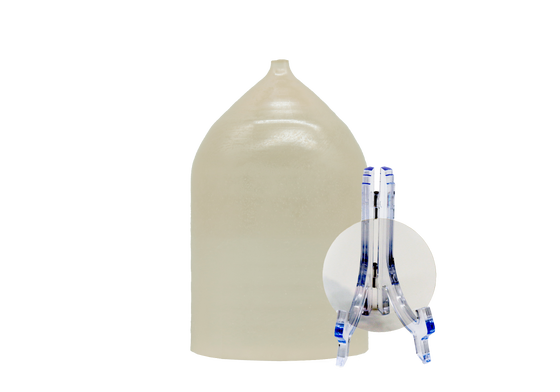

SGGG Crystal (Ca-Mg-Zr Doped Gadolinium Gallium Garnet), professional substrate material specially applied for epitaxial growth of bismuth iron garnet thin films

Name: SGGG Crystal (Ca-Mg-Zr Doped Gadolinium Gallium Garnet), professional substrate material specially applied for epitaxial growth of bismuth iron garnet thin films
Brand: ANHUI CRYSTRO CRYSTAL MATERIALS Co., Ltd.
SKU: SCR-2026-26-02
Price: 110.00 USD
Availability: InStock

Merknaam:	Crystro
Modelnummer:	SCR-2026-26-02
Leveringstermijn:	5-6WEKEN
Betalingsvoorwaarden:	T/T, Western Union, MoneyGram, Paypal

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Materialen:

SGGG

Moleculaire formule:

Gesubstitueerd Gd3GasO12

Kristalstructuur:

Kubisch kristalsysteem

Roosterconstante:

a=12,497 A

Groeimethoden:

Czochralski

Mohs-hardheid:

7.5

Dikte:

70,09 g/cm3

Smeltpunt:

1730°C

Reflectiecoëfficiënt:

1,954 @ 1064nm

Markeren:

SGGG Crystal substrate for epitaxial growth

Ca-Mg-Zr doped Gadolinium Gallium Garnet

Bismuth iron garnet thin film material

Productbeschrijving

SGGG Crystal (Ca-Mg-Zr Doped Gadolinium Gallium Garnet), professional substrate material specially applied for epitaxial growth of bismuth iron garnet thin films, high optical uniformity and stable crystal lattice structure for magneto-optical devices.

Gadolinium gallium garnet (GGG) substrates, one of the earliest developed materials for use as substrates, are unsuitable due to their extremely small lattice constants. As a result, SGGG crystals, which use calcium, magnesium, and zirconium as substitution ions, are more suitable as substrates for bismuth-iron garnet epitaxial films.

Indicator Name	Dimensions or Other Information	Reference Indicators
Dimensic	Nominal Size	3/4inch
Diameter (mm)	3"	76.20±0.3
	4"	101.60±0.3
Thickness (um)	3"	630±30
	4"	800±30 or custom
Crystaloptics	/	(111)±0.1°
Lattice constant	/	12.497±0.003A
Position the edges	Main positioning edge	[-110]±2°
	Sub-position the edges	[-1-12]±2°
Surface Quality	Flatness (degree)	Maximum value minimum value within 80% coverage area center ≤6um
	TTV	Maximum value - minimum value within 80% coverage area center ≤6um
	Dislocations (dislocations)	Within 80% coverage area, center region <10/cm2
		Within 10% of the center area covering 80% of the total surface area
Other Defects (Extrudedsurface)		Within 10% of the center area covering 80% of the total surface area

Key features:

Low fault density.

High consistency in lattice constants.

Typical applications:

The substrate material for BIG magnetoelectric epitaxial films.

Magnetic refrigeration.
