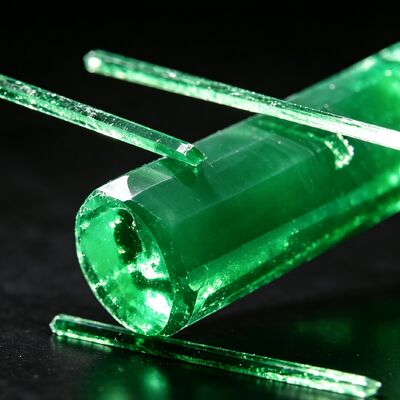

Ho:Cr:Tm:YAG (CTH:YAG) Laser Crystal, 2.1μm Eye-Safe, High Efficiency Flash/Diode Pumped

Name: Ho:Cr:Tm:YAG (CTH:YAG) Laser Crystal, 2.1μm Eye-Safe, High Efficiency Flash/Diode Pumped
Brand: ANHUI CRYSTRO CRYSTAL MATERIALS Co., Ltd.
SKU: LCR-2026-15-01
Price: 1,005.00 USD
Availability: InStock

Merknaam:	Crystro
Modelnummer:	LCR-2026-15-01
Leveringstermijn:	4-5 weken
Betalingsvoorwaarden:	T/T, Western Union, MoneyGram, Paypal

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Dopingconcentratie:

Ho:0,3~0,4at%Cr:0,3~1,2at%Tm:5~6at%

Oriëntatie:

<111>±5°

Vervorming van het uitgezonden golffront:

≤0,125λ/inch@1064nm

Uitstervenverhouding:

≥25db

Productgrootte:

Diameter≤15mm, lengte≤150mm

Dimensionale tolerantie:

Diameter: 0/-0,03 mm, lengte: 0/+0,5 mm

Cilindrische verwerking:

Slijpen, polijsten, draadsnijden

Parallellisme van eindvlakken:

≤10"

Loodrechtheid tussen eindvlak en staafas:

≤5′

Vlakheid van het eindvlak:

λ/10 @632,8 nm

Oppervlaktekwaliteit:

10-5 (MIL-O-13830A)

schuif:

0,15 ± 0,05 mm

Coating:

S1/S2: R@2100mm≤0,2%/Andere films kunnen worden aangepast

Lasergolflengte:

2100 nm

Brekingsindex:

1,80 bij 2094 nm

speciaal:

Wighoek, concaaf/convex, vergulding met hete laag, enz

Markeren:

Ho:Cr:Tm:YAG laser crystal 2.1μm

CTH:YAG laser crystal eye-safe

high efficiency diode pumped laser crystal

Productbeschrijving

Ho:Cr:Tm:YAG (CTH:YAG) Laser Crystal, 2.1μm Eye-Safe, High Efficiency Flash/Diode Pumped

Cr:Tm:Ho:YAG crystals are laser crystals that use yttrium aluminum garnet (YAG) as an activator medium, incorporating sensitizing ions chromium (Cr), energy-transfer ions thulium (Tm), and activator ions holmium (Ho). These crystals produce laser light of specific wavelengths through pulse solid-state laser devices and are widely used in various fields.

Crystalstructure	Cubic system
Lattice constant	12.01 Å
Moh's hardness	8.5
density	4.56±0.04 g/ cm3
Specific heat	0.59J/g.cm 3 @ 0-20℃
Elastic Modulus	310GPa
Young's modulus	3.17×10 4 Kg/mm 2
Poisson'sratio	0.3
Tensile strength	0.13~0.26GPa
Coefficient of thermal expansion	[100] Direction: 8.2×10 -6 / K @ 0~250℃
Coefficient of thermal expansion	[110] Direction: 7.7×10 -6 /K@ 0~250℃
Coefficient of thermal expansion	[111] Direction: 7.8×10 -6 /K@ 0~250℃
Thermal conductivity	14W/m/K@20℃ ; 10.5W/m/K@100℃
Thermo-optic coefficient (dn/dT)	7.3×10 -6 / K
Thermal shock resistance	790W/m
Solubility	Insoluble in water, slightly soluble in common acids

Main features:

High pulse output energy

Suitable for repetitive frequency work

Can work efficiently at room temperature

Suitable for lamp pumping, also suitable for diode pumping

The wavelength of laser work is relatively safe for human eyes

Application areas:

Medicine: The Cr:Tm:Ho:YAG laser is used in various surgical procedures in departments such as urology, orthopedics, otorhinolaryngology, dermatology, and gynecology. It is particularly effective in urological procedures involving urinary tract stones, prostate enlargement, and bladder tumors. Its high-energy pulsed laser can precisely shatter stones while minimizing damage to surrounding tissues.

Meteorology: In meteorological observations, the Cr:Tm: Ho:YAG laser can be employed in lidar systems to enhance the accuracy and real-time nature of meteorological data.

Research: Due to its unique laser characteristics and broad potential for applications, Cr:Tm:Ho:YAG lasers are also an important tool in the field of research, used for various physical, chemical, and biological experiments.
