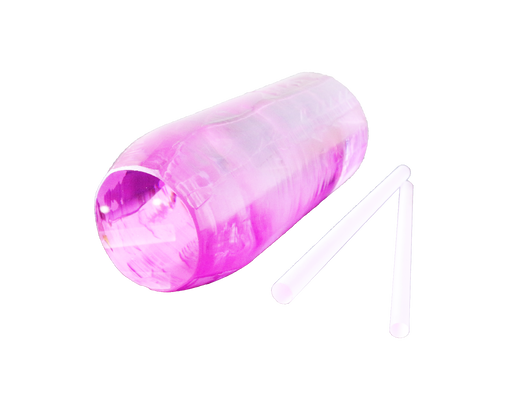

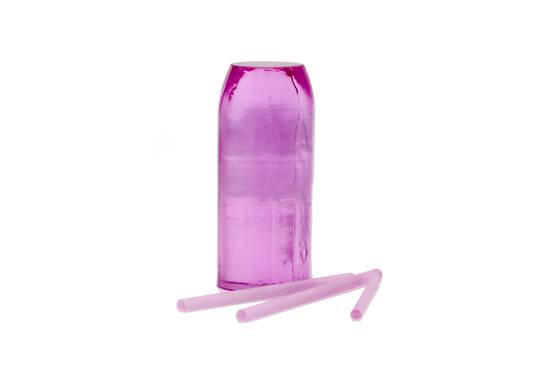

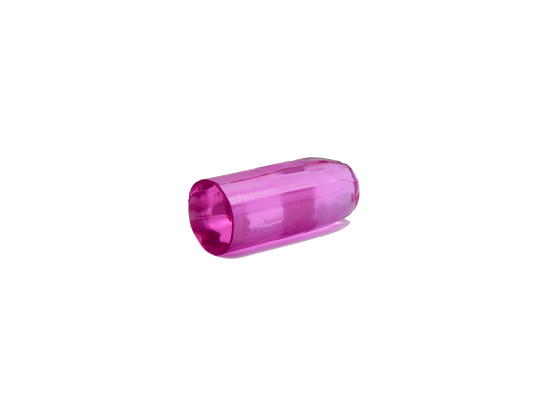

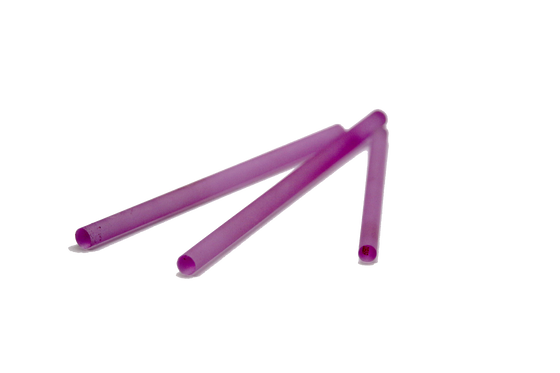

Nd:YAG Neodymium Doped YAG Laser Crystal for High Power Solid State Laser Systems

Name: Nd:YAG Neodymium Doped YAG Laser Crystal for High Power Solid State Laser Systems
Brand: ANHUI CRYSTRO CRYSTAL MATERIALS Co., Ltd.
SKU: LCR-2026-26-03
Price: 1,005.00 USD
Availability: InStock

Merknaam:	Crystro
Modelnummer:	LCR-2026-26-03
Leveringstermijn:	4-5 weken
Betalingsvoorwaarden:	T/T, Western Union, MoneyGram, Paypal

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Dopingverhouding:

00,5% tot 1%

Diametertolerantie:

0,0 mm/-0,05 mm

Lengtetolerantie:

±0,1 mm

schuif:

<0>

Vlakheid:

<λ/10@633nm

Parallellisme:

<10"

Verticaliteit:

<15'

Golffrontdistortie:

<λ/8@633nm

Oppervlakteafwerking:

10/5

Afmetingswaaier:

Φ3~Φ40mm

Markeren:

Nd:YAG laser crystal for solid state lasers

Neodymium doped YAG laser crystal

High power Nd:YAG laser crystal

Productbeschrijving

Nd:YAG Neodymium Doped YAG Laser Crystal for High Power Solid State Laser Systems

Nd:YAG is a laser crystal with excellent overall performance, primarily used in industrial, medical, aesthetic, and scientific research applications. In high-power, high-energy, Q-switched, and mode-locked ultra-short pulse laser applications, Nd:YAG is a widely used laser working material. Cosrite can provide high-end Nd:YAG crystals with a wavefront distortion of ≤0.02 λ/inch @ 1064 nm, a contrast ratio of ≥40 dB, parallelism <10″, and verticality <3′.

Crystro can provide high-end Nd:YAG crystals

Indicator	High Quality Nd:YAG	Normal Quality Nd:YAG
Doping Ratio	1%-1.1%	1%-1.1%
Wavefront Distortion	≤0.02 Minch@1064nm	≤0.03 Minch@1064nm
Dullness Ratio	≥40dB	38dB
Flatness	<λ10	<λ10
Parallelism	<10"	<10"
Verticality	＜3‘	<10’
Surface Finish	10/5	10/5
Dimensions	Customized according tocustomer needs

Product Features:

Molecular Formula	Nd:Y3Al5O12
Lattice Constant	a=12.01A
Growth Mode	Czochralski
Density	4.5g/cm3
Mohs Hardness	8.5
Melting point	1970°C
Refractiveindex	1.82@1064nm

Main characteristics:

High gains

Low threshold value

High power

Excellent thermal conductivity and thermal shock resistance

Suitable for multiple modes of operation (continuous, pulse, Q-Switching, mode-locking)

Typical applications:

Medical cosmetic devices

Near-range infrared solid-state lasers and their multiple frequencies, triple frequencies

Diode pump all solid-state microscopic laser

Industrial lasers

High performance laser instruments

Photoelectric resistance device system

Laser Therapeutics and Cosmetizers
