Punt: | Het Lithiumtantalate Litao3 Crystal Ingot With Competitive Price van de ZAAGrang | Smeltpunt: | 1650℃ |
---|---|---|---|
Transparantiewaaier: | 400 – 5000 NM | Absorptierand: | 270nm |
Richtlijn: | X-112°Y, 36°Y, 42°Y±0.5 | Diameter: | tot 4inch |
Oorsprong: | China | Levering: | 1-4 weken |
Hoog licht: | Piezoelectric Kristal van de ZAAGrang Litao3,Litao3 Baar Piezoelectric Effect Kristallen,Piezoelectric het Effect van de ZAAGrang Kristallen |

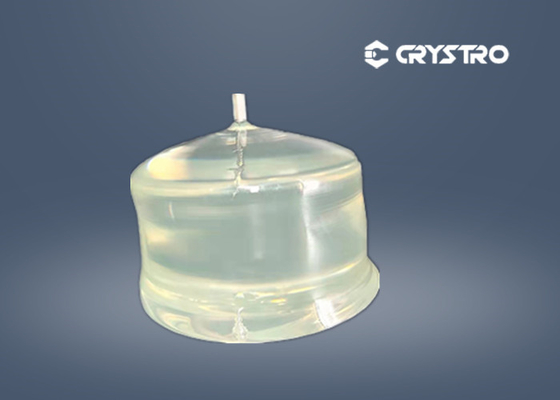

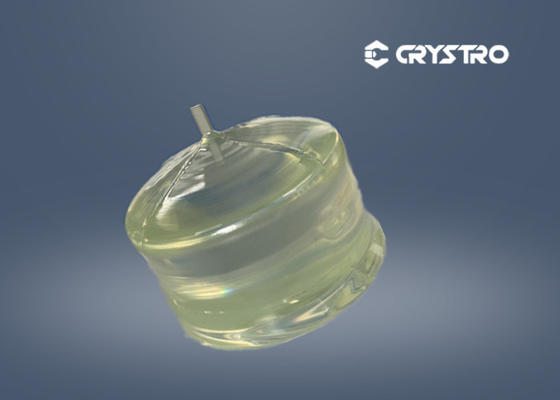

Het Lithiumtantalate Litao3 Crystal Ingot With Competitive Price van de ZAAGrang
Lithiumtantalate (LiTaO3) is perovskite die unieke optische, piezoelectric en pyroelectric eigenschappen bezit die het voor niet-lineaire optica, passieve infrarode sensorssuch als motiedetectors, terahertz generatie en opsporing, oppervlakte akoestische waveapplications, celtelefoons en misschien pyroelectric kernfusie waardevol maken. De aanzienlijke informatie is beschikbaar bij commerciële bronnen over dit zout.
Crystro verstrekt:
Basiseigenschappen van LiTaO3:
Eigenschappen | LiTaO3 (LT.) |
Type van Materiaal | Enig Kristal |
Crystal Structure | Trigonal, a = 5,154, c = 13.784Å |
Smeltpunt | 1650℃ |
Curietemperatuur | 607℃ |
Transmissiewaaier | 400 – 5000 NM |
Absorptierand | 270nm |
Absorptieverlies | < 0=""> |
R.i. | geen =2.176, Ne =2.180 (bij 0,633 µm) |
geen =2.131, Ne =2.134 (bij 1,2 µm) | |
Dichtheid | 7.45g/cm3 |
Warmtegeleidingsvermogen | 8.78x 10-7 m2/sec |
Optische homogeniteit | ~10-5 |
Hardheid (Mohs) | 5 |
Elastische Coëfficiënt | Ce 11 2,33 (X 1011 N/m2) |
Ce 33 2,77 (X 1011 N/m2) | |
Diëlektrische Constante | ε11/ε0 52,7 |
ε33/ε0 44,5 | |
Oplosbaarheid in Water | onoplosbaar in water |
NLO-Coëfficiënten | D33 = 13,8 pm/V |
D22=2,4pm/V | |
D11=0,85pm/V | |
Electro-Optic Coëfficiënten | r31 =8.4 pm/V, @633nm |
r22 =20 pm/V, @633nm | |
r33 =30.5 pm/V, @633nm | |
Schadedrempel | 2 mw cm2@532nm |
Standaarddiameter | dia150x50mm |
Typische Specificaties:
Specificaties | Boule | Wafeltje | ||
Diameter | Φ3“ | Φ4“ | Φ3“ | Φ4“ |
Lengte of Dikte (mm) | ≤100 | ≤50 | 0.35-0.5 | |
Richtlijn | 127.86°Y, 64°Y, 135°Y, X, Y, Z, en gesneden andere | |||
Ref.Flat Richtlijn | X, Y | |||
Ref.Flat Lengte | 22±2mm | 32±2mm | 22±2mm | 32±2mm |
Front Side-het oppoetsen | / | De spiegel poetste 5-15 Å op | ||
Achterkant het Omwikkelen | / | 0.31.0μm | ||
Vlakheid (μm) | / | ≤15 | ||
Boog (μm) | / | ≤25 |
Crystro kan andere grootte en specificatie van wafeltjes op verzoek aanbieden.
